WS2801 product overview
Explore the WS2801 LED driver IC for your lighting design.
Catalog reference specifications
| Manufacturer reference | Worldsemi |
|---|---|
| Model / family | WS2801 |
| Control interface | Two-wire CLK / DAT |
| Package reference | SOP-14 |
| Output channels | 3 |
Confirm the exact WS2801 / WS2801S ordering variant when requesting electrical characteristics.
Specify the IC supply and LED load rail separately. Electrical limits and output-current settings are confirmed for the selected device and design.

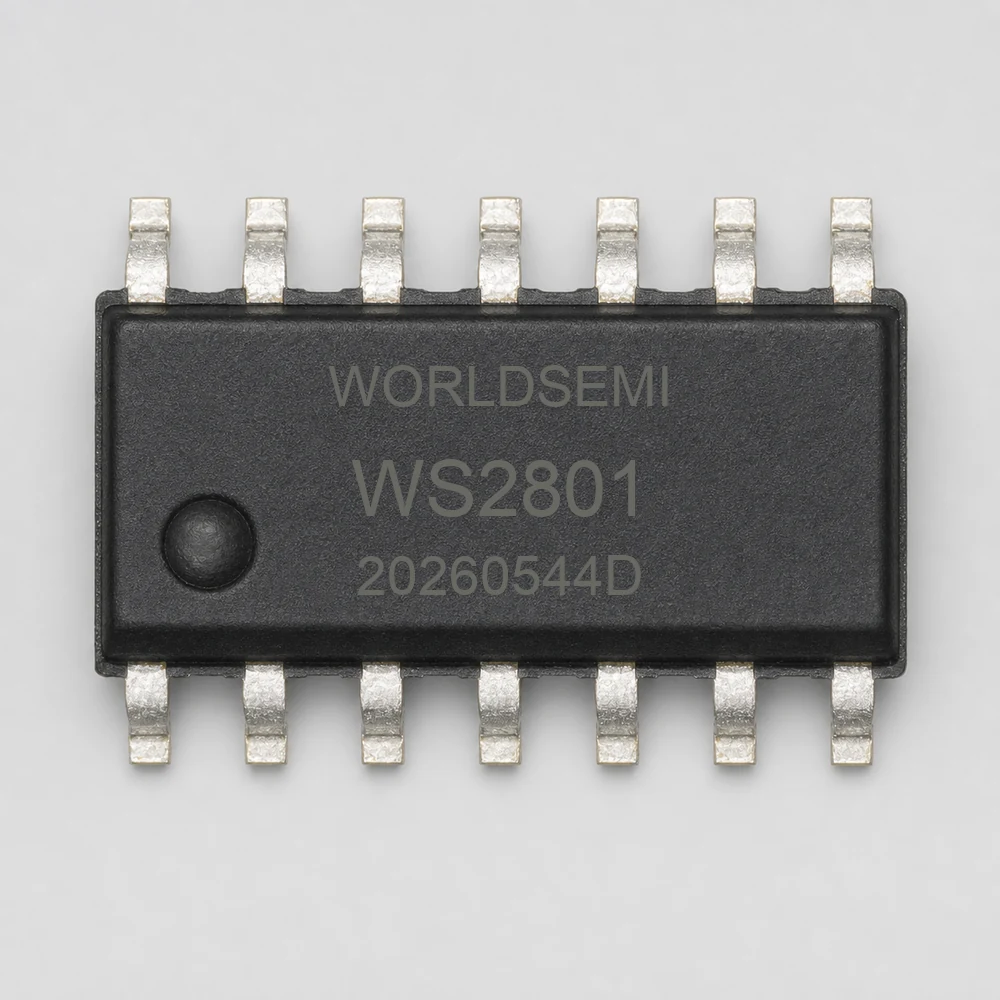

Manufacturer family / package illustration; confirm the exact model and package drawing.
Request model-specific details
Send the full model, package or configuration, required quantity, intended application and destination country. Confirm final electrical and mechanical requirements for your order.
