WS2805 product overview
Explore the WS2805 LED driver IC for your lighting design.
Catalog reference specifications
| Manufacturer reference | Worldsemi |
|---|---|
| Model / family | WS2805 |
| Control interface | Single-wire signal bypass |
| Package reference | SOP10 |
| Output channels | 5 |
| Grayscale reference | 8-bit / 256 levels (manufacturer V1.6, page 1) |
Specify the IC supply and LED load rail separately. Electrical limits and output-current settings are confirmed for the selected device and design.

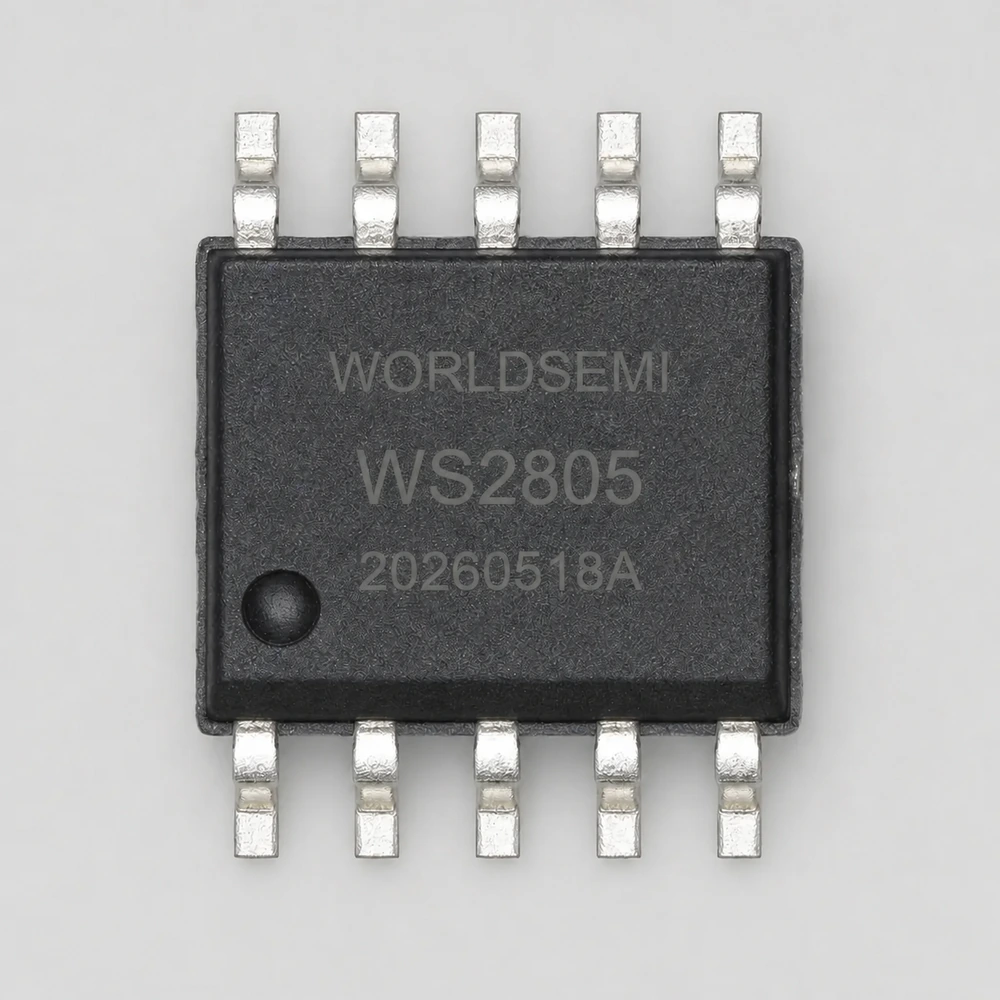

Manufacturer family / package illustration; confirm the exact model and package drawing.
Request model-specific details
Send the full model, package or configuration, required quantity, intended application and destination country. Confirm final electrical and mechanical requirements for your order.
