Configuration reference

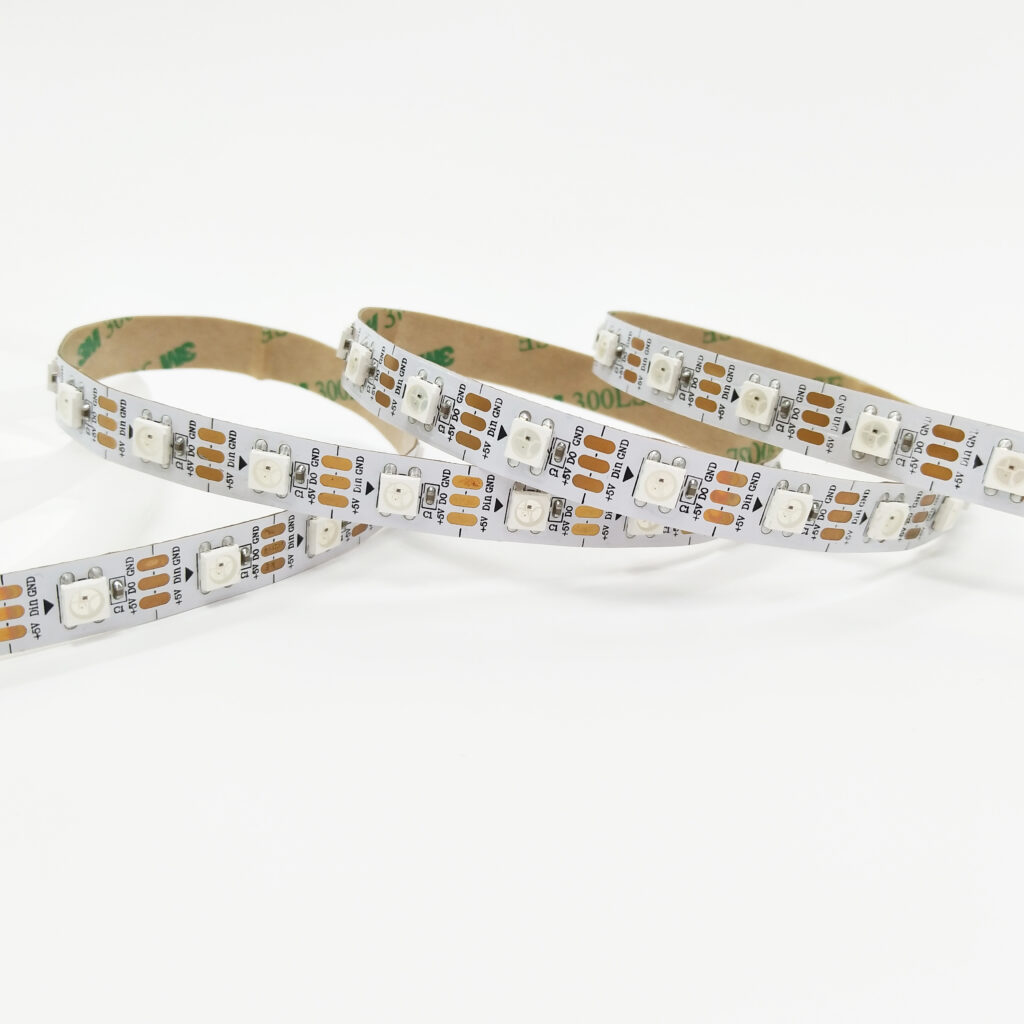

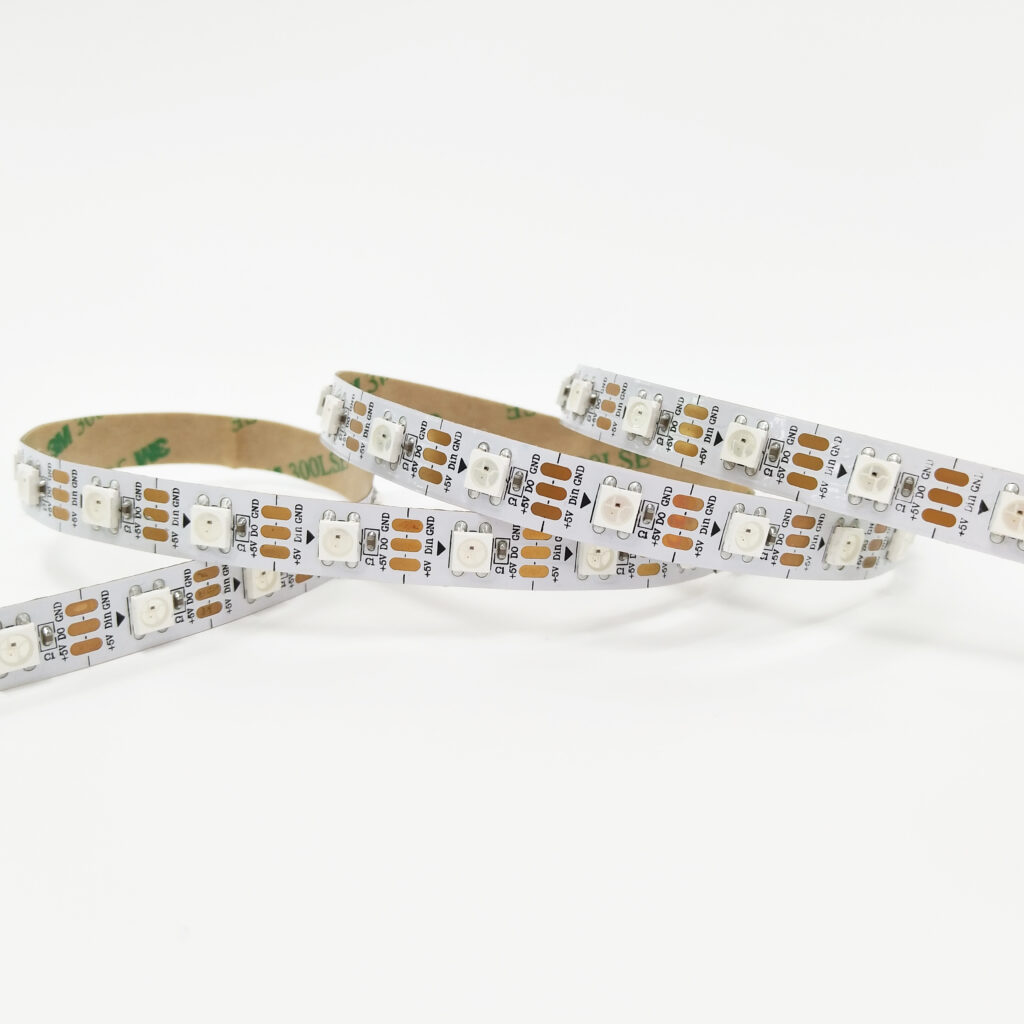

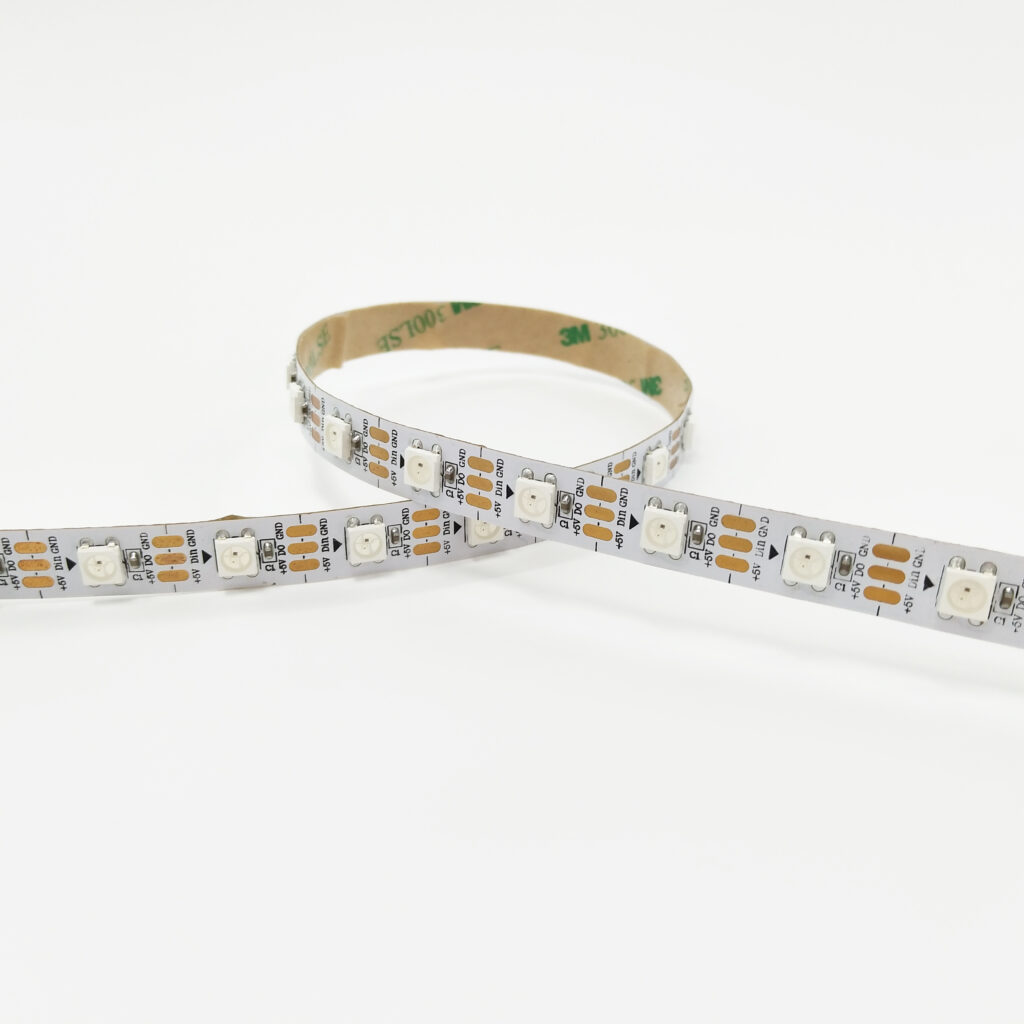

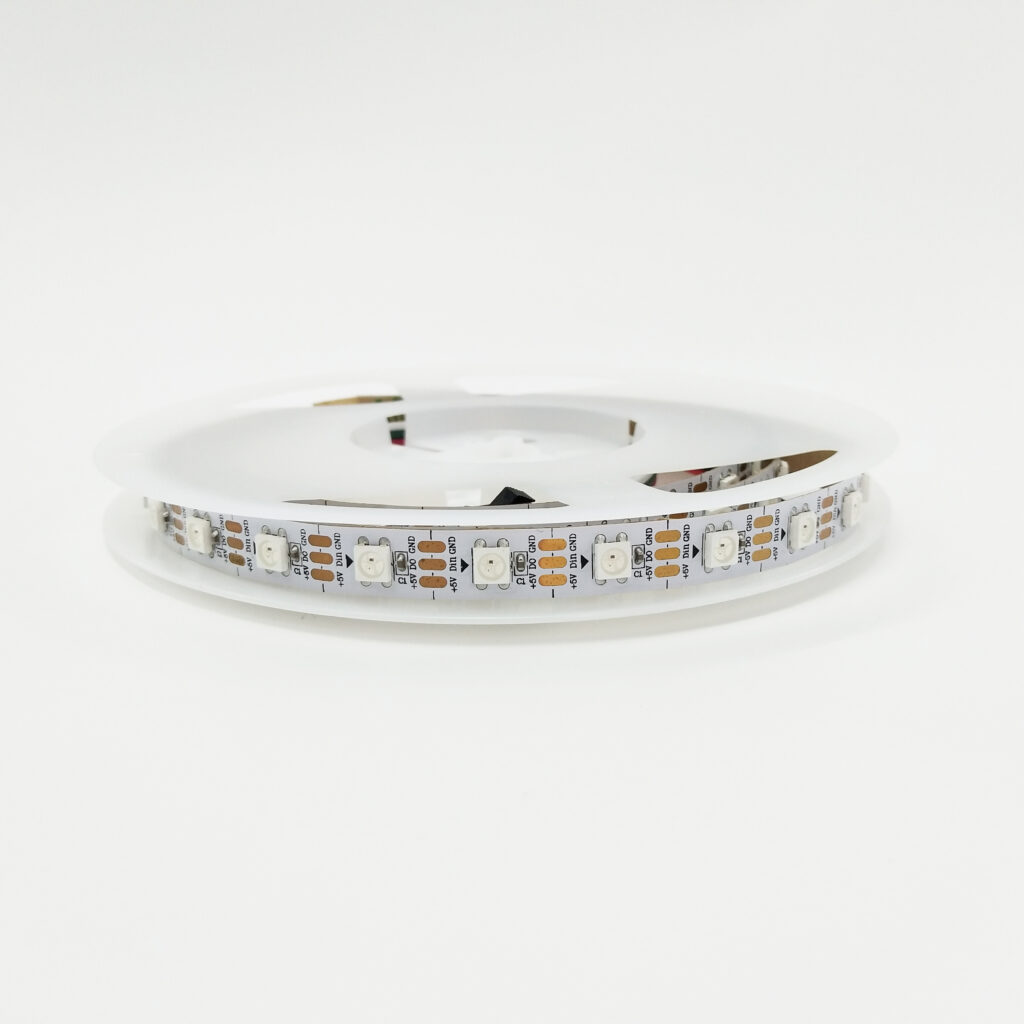

WS2812 SMD5050 60LEDs/M RGB SPI LED Strip for addressable lighting projects. Compare the configuration below and send your required length, controller and installation details to YF-WIND.
| SMD Type | 5050 |
|---|---|
| IC Type | WS2812 |
| IC Q'ty | 60 pixels/m |
| IC Location | Internal IC |
| LED Q'ty | 60LEDs/m |
| Voltage | DC5V |
| Max. Power | 14.4W/M |
| Color | RGB Dream Color |
| Cuttable Unit | 16.67mm |
| LED Pitch | 16.67mm |
| PCB Width | 10mm |
Plan your installation
Confirm the control protocol, supply voltage, pixel count, cut length and power injection layout before ordering. Waterproof construction and connectors should be selected for the installation environment. The values above describe the listed configuration; confirm the final build with your quotation.
Request a project quote
Send the product name, quantity or total length, destination country, controller details and required IP rating.
